What is a Corrugated Bolted Steel Tank

Corrugated Bolted Steel tanks are the Next Generation of Water Storage Tanks. They are innovative and Long Lasting at a Lower Cost, with an unprecedented Warranty. Built to the same structural standards as other approved water storage tanks. Corrosion Resistant Panels, Heavy Flexible Membrane liners, Built to ASCE7.

Steel:

  • Zinc Galvanized Carbon Steel
  • Corrugated Panels – high strength

Zinc Galvanizing:

  • Zinc Galvanized to G115 or G140
  • High Corrosive Resistance
  • Powder Coatings available
  • Meets Structural Codes for Liquid Storage Tanks ASCE7 for wind and seismic loading.
  • Site-Specific Structural Calculations based on Location and Application.

Fittings & Appurtenances:

  • Roof Options: 10 Deg, 30 Deg, Flat Structural Roof- minimum deck load 20 psf
  • Seismic Anchoring

Warranties:

  • Long Warranties up to 30 Years

OSHA:

  • Safety Appurtenances per OSHA
  • Fittings per ANSI, ATSM
  • Manways

Liners/Coatings:

  • Flexible Membrane Liners

Corrugated / Galvanized Tanks are Lower Priced Options

Cost Effective Option:

  • Additional Options and Availability to the Municipal and Education Industries: It will also benefit the Public, Residential, Government, State Departments, Commercial Businesses, Other Industries.
  • Reducing Cost: Corrugated Bolted Steel Tanks are more cost-effective. Materials are less, and the tanks are easier to build reducing installation costs. Overall project cost can drop up to 50%.
  • Providing Alternatives – For More Choices: Municipalities, Utilities, Schools and Hospitals, have very few choices for water storage. Most are very costly. Corrugated Bolted Steel tanks are the first choice to provide a lower cost option for small and medium-sized tanks up to 2,900,000 gallons.

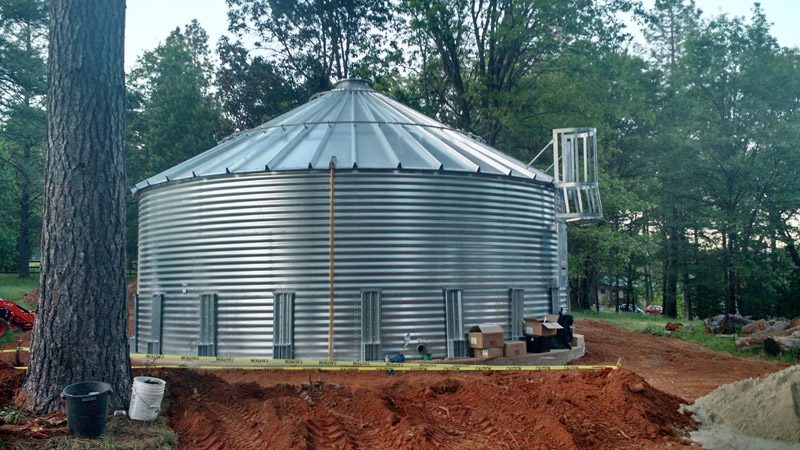

75,000 Gallon Water Storage Tank

Description

75,000 Gallon Corrugated Bolted Steel Tank with dimensions of 74.3 feet in diameter and 3.7 high. 10º low J rib roof with a long list of accessories including OSHA Approved Ladders, Cages, Appurtenances, Lockable Deck manways, and Roof Vents. Each tank comes with an NSF61 Certified Liner of 30-60 mil flexible membrane. The Zinc Galvanized Steel in both G115 & G140 come standard and each tank can also have exterior insulation included. Get a quote on this tank for your next Fire Protection, Potable Water Storage, Irrigation, Rainwater Harvesting, or Wastewater project.

Tank Specification

Additional information

Manufacturer

SteelCore Tanks

Size (Gallon)

Nominal Gallons

78267

M3

296.27

BBL

2484.66

Roof

10º low J rib

Diameter

74.3

Eve Height

3.7

Overall Height FT.

10.5

Freeboard in Inches

4

Freeboard in Feet

0.3

Manufacturer

SteelCore Tanks

Accessories

OSHA Approved ladders, cages, appurtenances, Lockable Deck manways, Side Shell Manway, Roof vents

Additional Accessories

Catwalks & Other Specialty Systems, Liquid Level Gauge Board and Target

Interior Liner

NSF61 Certified Coatings / Liners, 30-60 mil flexible membrane

Structural Design

IBCV and ASCE7 Structural code for water storage

Exterior Color Options

Available

NFPA 22 Compliant Fire protection

Yes

Seismic Anchoring Design

Yes

High Wind Designs

Yes

Material

Zinc Galvanized Steel – G115 & G140

Insulation Systems Interior

Available

Insulation Systems Exterior

Available

Fittings

ASTM Bolts, Flanges – ANSI150#, Wall Penetrations, Floor Penetrations
