What is a Corrugated Bolted Steel Tank

Corrugated Bolted Steel tanks are the Next Generation of Water Storage Tanks. They are innovative and Long Lasting at a Lower Cost, with an unprecedented Warranty. Built to the same structural standards as other approved water storage tanks. Corrosion Resistant Panels, Heavy Flexible Membrane liners, Built to ASCE7.

Steel:

Zinc Galvanized Carbon Steel
Corrugated Panels – high strength

Zinc Galvanizing:

Zinc Galvanized to G115 or G140
High Corrosive Resistance
Powder Coatings available

Engineering:

Meets Structural Codes for Liquid Storage Tanks ASCE7 for wind and seismic loading.
Site-Specific Structural Calculations based on Location and Application.

Fittings & Appurtenances:

Roof Options: 10 Deg, 30 Deg, Flat Structural Roof- minimum deck load 20 psf
Seismic Anchoring

Warranties:

Long Warranties up to 30 Years

OSHA:

Safety Appurtenances per OSHA
Fittings per ANSI, ATSM
Manways

Liners/Coatings:

Flexible Membrane Liners

Corrugated / Galvanized Tanks are Lower Priced Options

Cost Effective Option:

Additional Options and Availability to the Municipal and Education Industries: It will also benefit the Public, Residential, Government, State Departments, Commercial Businesses, Other Industries.
Reducing Cost: Corrugated Bolted Steel Tanks are more cost-effective. Materials are less, and the tanks are easier to build reducing installation costs. Overall project cost can drop up to 50%.
Providing Alternatives – For More Choices: Municipalities, Utilities, Schools and Hospitals, have very few choices for water storage. Most are very costly. Corrugated Bolted Steel tanks are the first choice to provide a lower cost option for small and medium-sized tanks up to 2,900,000 gallons.

50,000 Gallon Water Storage Tank

Add to quote

Description

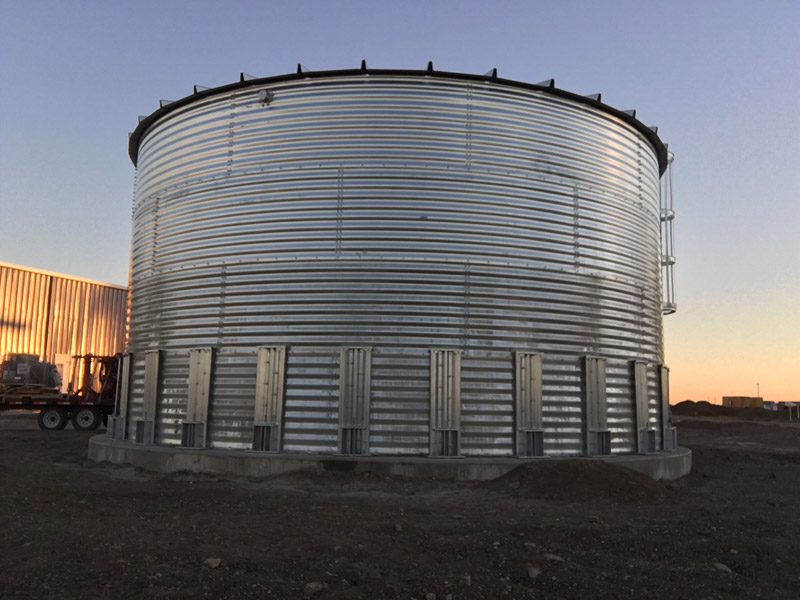

50,000 Gallon Corrugated Bolted Steel Tank with dimensions of 24.9 feet in diameter and 14.2 high and weighing 4735 lbs. 10º low v rib roof with a long list of accessories including OSHA Approved Ladders, Cages, Appurtenances, Lockable Deck manways, and Roof Vents. Each tank comes with an NSF61 Certified Liner of 30-60 mil flexible membrane. The Zinc Galvanized Steel in both G115 & G140 come standard and each tank can also have exterior insulation included. Get a quote on this tank for your next Fire Protection, Potable Water Storage, Irrigation, Rainwater Harvesting, or Wastewater project.

Additional information

Weight	4735 lbs
Manufacturer	SteelCore Tanks
Gallons	50000
Size (Gallon)	50000
Nominal Gallons	49779
M3	188.05
BBL	1580.28
Roof	10º low v rib
Diameter	24.9
Eve Height	14.2
Overall Height FT.	17
Freeboard in Inches	4
Freeboard in Feet	0.3
Manufacturer	SteelCore Tanks
Accessories	OSHA Approved ladders, cages, appurtenances, Lockable Deck manways, Side Shell Manway, Roof vents
Additional Accessories	Catwalks & Other Specialty Systems, Liquid Level Gauge Board and Target
Interior Liner	NSF61 Certified Coatings / Liners, 30-60 mil flexible membrane
Structural Design	IBCV and ASCE7 Structural code for water storage
Exterior Color Options	Available
NFPA 22 Compliant Fire protection	Yes
Seismic Anchoring Design	Yes
High Wind Designs	Yes
Material	Zinc Galvanized Steel – G115 & G140
Insulation Systems Interior	Available
Insulation Systems Exterior	Available
Fittings	ASTM Bolts, Flanges – ANSI150#, Wall Penetrations, Floor Penetrations
