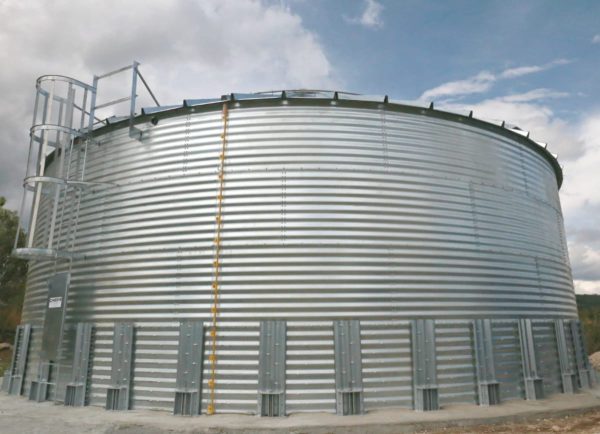

Corrugated Bolted Steel tanks are the Next Generation of Water Storage Tanks. They are innovative and Long Lasting at a Lower Cost, with an unprecedented Warranty. Built to the same structural standards as other approved water storage tanks. Corrosion Resistant Panels, Heavy Flexible Membrane liners, Built to ASCE7.
| Weight | 3995 lbs |
|---|---|
| Manufacturer | SteelCore Tanks |
| Size (Gallon) | |
| Nominal Gallons | 35170 |
| M3 | 133.13 |
| BBL | 1116.5 |
| Roof | 30º v rib |
| Diameter | 18.6 |
| Eve Height | 17.9 |
| Overall Height FT. | 23 |
| Freeboard in Inches | 4 |
| Freeboard in Feet | 0.3 |
| Manufacturer | SteelCore Tanks |
| Accessories | OSHA Approved ladders, cages, appurtenances, Lockable Deck manways, Side Shell Manway, Roof vents |
| Additional Accessories | Catwalks & Other Specialty Systems, Liquid Level Gauge Board and Target |

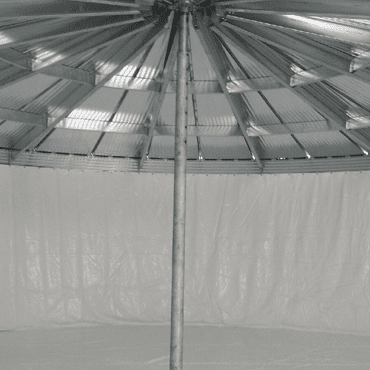

| Interior Liner | NSF61 Certified Coatings / Liners, 30-60 mil flexible membrane |
| Structural Design | IBCV and ASCE7 Structural code for water storage |
| Exterior Color Options | Available |
| NFPA 22 Compliant Fire protection | Yes |
| Seismic Anchoring Design | Yes |
| High Wind Designs | Yes |
| Material | Zinc Galvanized Steel – G115 & G140 |
| Insulation Systems Interior | Available |
| Insulation Systems Exterior | Available |
| Fittings | ASTM Bolts, Flanges – ANSI150#, Wall Penetrations, Floor Penetrations |
