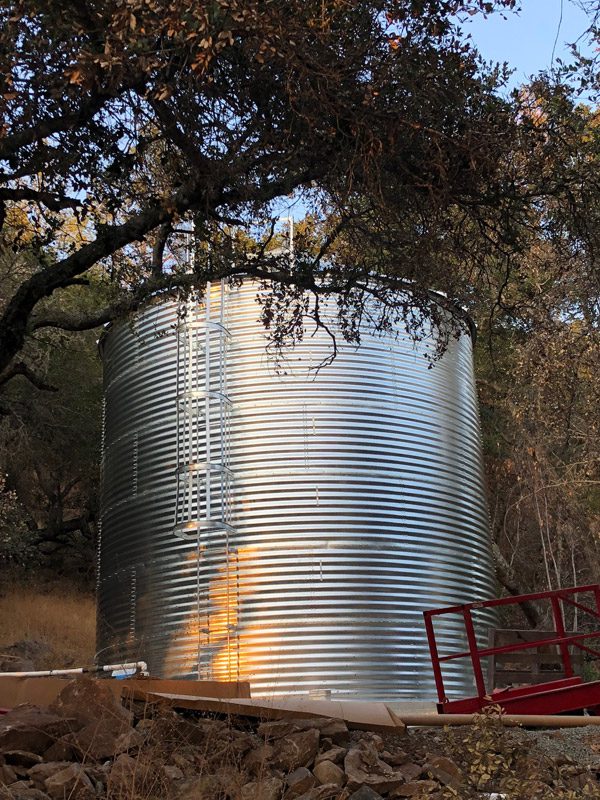

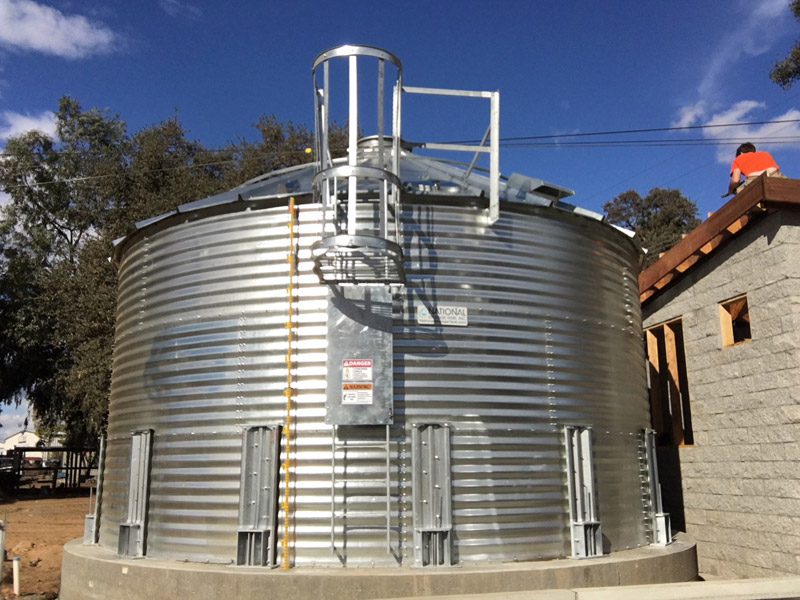

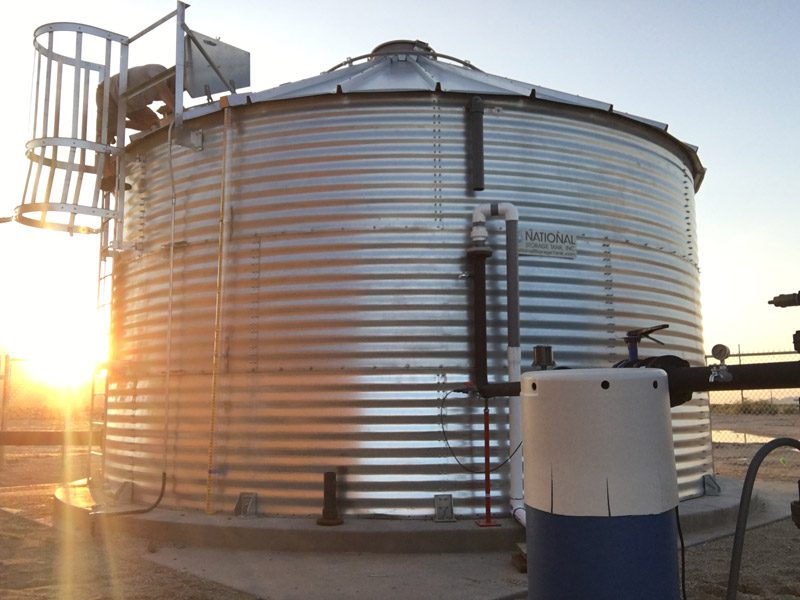

25,000 Gallon Corrugated Bolted Steel Tank with dimensions of 15.5 feet in diameter and 17.9 high and weighing 3305 lbs. 10º low v rib roof with a long list of accessories including OSHA Approved Ladders, Cages, Appurtenances, Lockable Deck manways, and Roof Vents. Each tank comes with an NSF61 Certified Liner of 30-60 mil flexible membrane. The Zinc Galvanized Steel in both G115 & G140 come standard and each tank can also have exterior insulation included. Get a quote on this tank for your next Fire Protection, Potable Water Storage, Irrigation, Rainwater Harvesting, or Wastewater project.
| Weight | 3305 lbs |
|---|---|
| Manufacturer | SteelCore Tanks |
| Gallons | 25000 |
| Size (Gallon) | 25000 |
| Nominal Gallons | 24423 |
| M3 | 92.45 |
| BBL | 775.33 |
| Roof | 10º low v rib |
| Diameter | 15.5 |
| Eve Height | 17.9 |
| Overall Height FT. | 19.8 |
| Freeboard in Inches | 4 |
| Freeboard in Feet | 0.3 |
| Manufacturer | SteelCore Tanks |
| Accessories | OSHA Approved ladders, cages, appurtenances, Lockable Deck manways, Side Shell Manway, Roof vents |

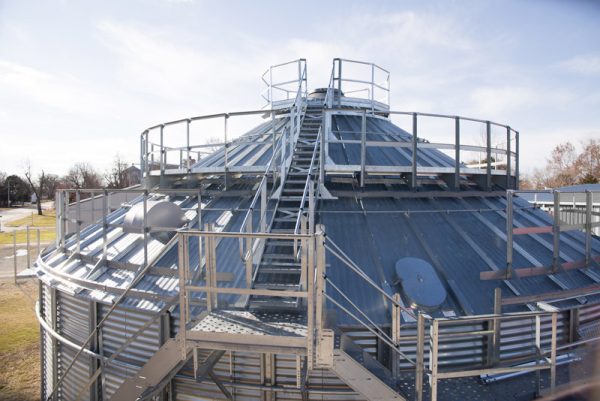

| Additional Accessories | Catwalks & Other Specialty Systems, Liquid Level Gauge Board and Target |
| Interior Liner | NSF61 Certified Coatings / Liners, 30-60 mil flexible membrane |
| Structural Design | IBCV and ASCE7 Structural code for water storage |
| Exterior Color Options | Available |
| NFPA 22 Compliant Fire protection | Yes |

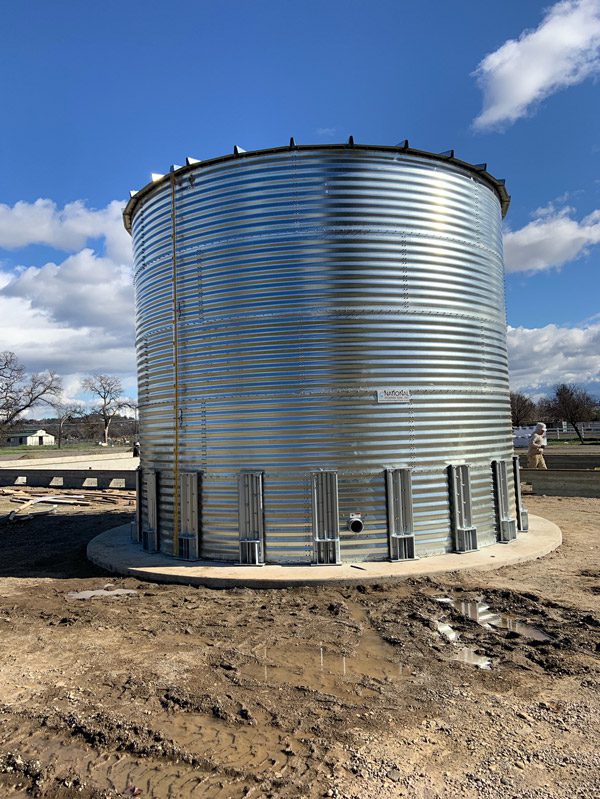

| Seismic Anchoring Design | Yes |
| High Wind Designs | Yes |
| Material | Zinc Galvanized Steel – G115 & G140 |
| Insulation Systems Interior | Available |
| Insulation Systems Exterior | Available |
| Fittings | ASTM Bolts, Flanges – ANSI150#, Wall Penetrations, Floor Penetrations |
